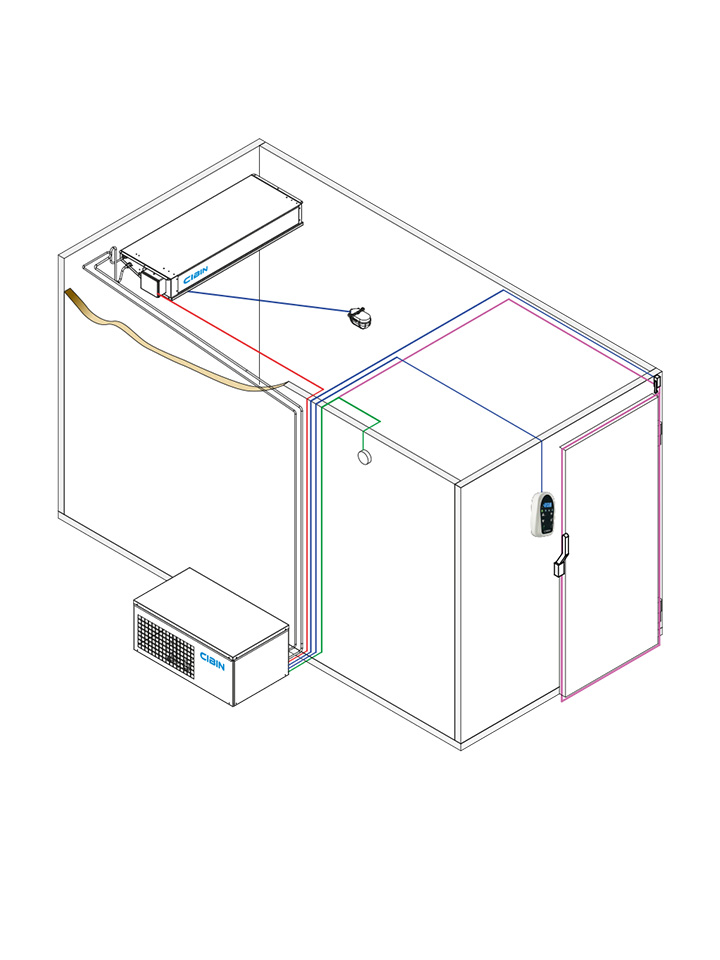

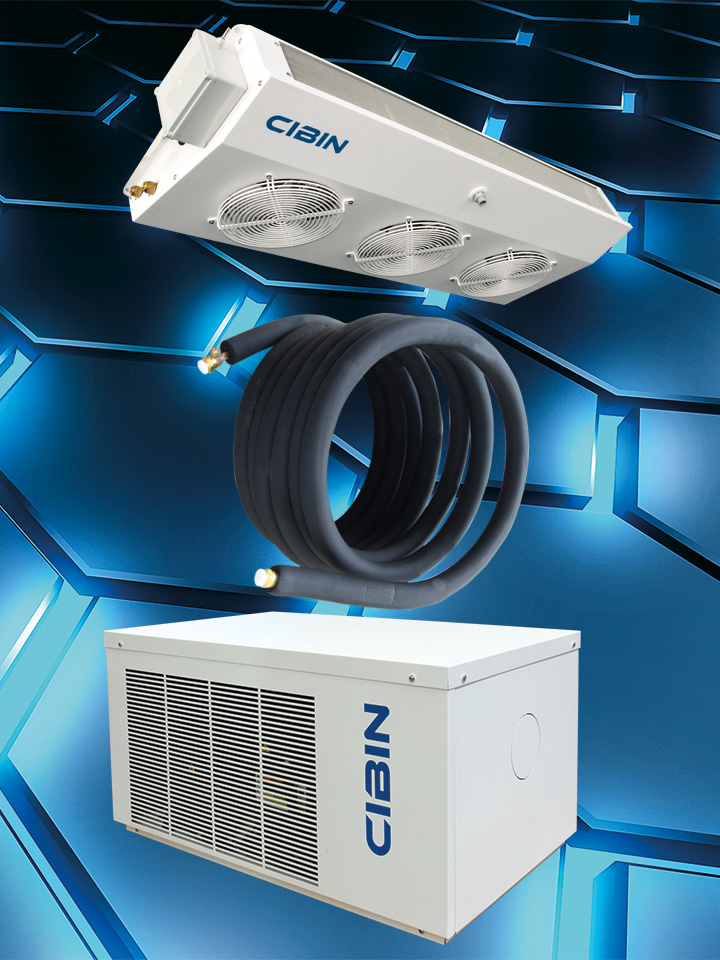

Taiga is teh perfect split for cold room keeping fresh and already frozen products ready to use. Precharged refrigerant piping snap fastener (6m, 12m).

Icon_ready_to_use

 TECHNICAL CHARACTERISTICS

Standard equipment:
  • Hermetic compressor *
  • Semi-hermetic compressor *
  • Anti-vibration compressor brackets
  • Vibration-cushioned suction and discharge piping of the compressor
  • Crankcase resistance
  • Air condensation
  • Sound-absorbing body coating
  • Galvanized powder coated sheet steel body
  • Evaporator body of aluminium-magnesium alloy
  • Evaporator of copper pipes and aluminium fins
  • Condenser of copper pipes and aluminium fins
  • Automatic restarting low pressure switch
  • Automatic restarting high pressure switch
  • Axial fan
  • Safety valve *
  • Condenser fans protection
  • Thermic compressor protection
  • Thermic compressor protection with motor protection *
  • Condensation control pressure switch
  • Thermostatic expansion valve with external equalization
  • Dehydrator filter
  • Liquid gas solenoid valve
  • Liquid receiver
  • Sight glass
  • Suction pipe stop cock
  • Liquid gas pipe stop cock
  • Automatic electric defrosting
  • Compressor stop in idling
  • High and low pressure ¼” pipe plugs
  • Condensation outlet resistor (only for low temperature models)
  • Thermic magnetic switch
  • Cold room ceiling light
  • Ambient temperature probe
  • Defrosting end temperature probe
  • Condensation control temperature probe
  • Connecting cable for door micro switch to turn off the system and to turn on the light at door opening
  • Free relay for transfer alarm signals
Remote control with:
  • Transformer
  • Digital display with temperature indicator at one decimal
  • On/Off switch
  • Cold room light switch
  • Running state display: cold – defrosting – evaporator fans – alarm status
  • Programming keys
  • Alarm display
  • Manual defrosting key
  • High temperature alarm
  • Low temperature alarm
  • High temperature alarm dirty condenser
  • Low temperature alarm condenser
  • Open door alarm
  • High pressure alarm
  • Low pressure alarm
  • Defrosting end alarm because of time-out
  • Alarm ambient temperature probe defect
  • Alarm defrosting end temperature probe defect
  • Alarm condensation control temperature probe defect
  • Timer emergency running in case of these events:
    – Ambient temperature probe defect
    – Defrosting end temperature probe defect
    – Condensation control temperature probe defect
    – Cold room door open (if there is door micro switch)
  • Installation possibility of a second remote control as slave
  • Pre-set connection for Frigotel supervision

Optional:
  • Door micro switch
  • Water condensation with liquid receiver. Pressure control valve. Pipe connection ½”
  • Different voltage
  • Tropicalised version
  • Condenser fan speed regulator
  • Pre-heated switchboard
  • Voltage display for machine stop in case of incorrect power supply
  • Long distance option for the remote control at distances longer than 15 m
  • Acoustic siren with flashing to indicate the alarm state
  • Switchboard for the management of two machines in the same cold room
  • Another remote control to use as slave
  • Electronic module for the connection to Frigotel supervision system
  • Evaporator with cataphoretically painting
  • Condenser with cataphoretically painting
  • Acoustical soundproofed version
* depending on model

MODELS

icona-scheda-passwordIn order to consult manual and data sheets, you should require the password

R452A

TN – R452A – 50 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc 0°C / Ta + 32°C

Technical data Manual
999908802 TAIGA 06125 N 0.5 230/1+N/50 1025
999908803 TAIGA 07125 N 0.75 230/1+N/50 1337
999908804 TAIGA 09125 N 1 230/1+N/50 1490
999908806 TAIGA 11225 N 1 230/1+N/50 2026
999908807 TAIGA 13225 N 1.2 400/3+N/50 2303
999908808 TAIGA 15225 N 1.5 400/3+N/50 2846

BT – R452A – 50 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc -20°C / Ta + 32°C

Technical data Manual
999908800 TAIGA 12125 B 1.2 230/1+N/50 880
999908801 TAIGA 17125 B 1.7 230/1+N/50 1072
999908809 TAIGA 19225 B 2.1 400/3+N/50 1584
999908810 TAIGA 24225 B 3.1 400/3+N/50 2090

TN – R452A – 60 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc 0°C / Ta + 32°C

Technical data Manual
  TAIGA 06125 N 0.5 230/1+N/60 1025
  TAIGA 09125 N 1 230/1+N/60 1490
  TAIGA 13225 N 1.2 230/1+N/60 2303
  TAIGA 15225 N 1.5 230/1+N/60 2846

BT – R452A – 60 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc -20°C / Ta + 32°C

Technical data Manual
999908865 TAIGA 17125 B 1.7 230/1+N/60 1072
  TAIGA 24225 B 3.1 230/3+N/60 2090

Kit: Precharged pipes + Electric cables

Code Modell Lenght m
999909220 TAIGA 06125N 6
999909222 TAIGA 07125N 6
999909222 TAIGA 09125N 6
999909222 TAIGA 11225N 6
999909222 TAIGA 13225N 6
999909222 TAIGA 15225N 6
999909224 TAIGA 12125B 6
999909224 TAIGA 17125B 6
999909226 TAIGA 19225B 6
999909226 TAIGA 24225B 6
999909221 TAIGA 06125N 12
999909223 TAIGA 07125N 12
999909223 TAIGA 09125N 12
999909223 TAIGA 11225N 12
999909223 TAIGA 13225N 12
999909223 TAIGA 15225N 12
999909225 TAIGA 12125B 12
999909225 TAIGA 17125B 12
999909227 TAIGA 19225B 12
999909227 TAIGA 24225B 12

* Max ambient temperature: + 43°C

Ta: Ambient temperature
Tc: Cold room temperature
