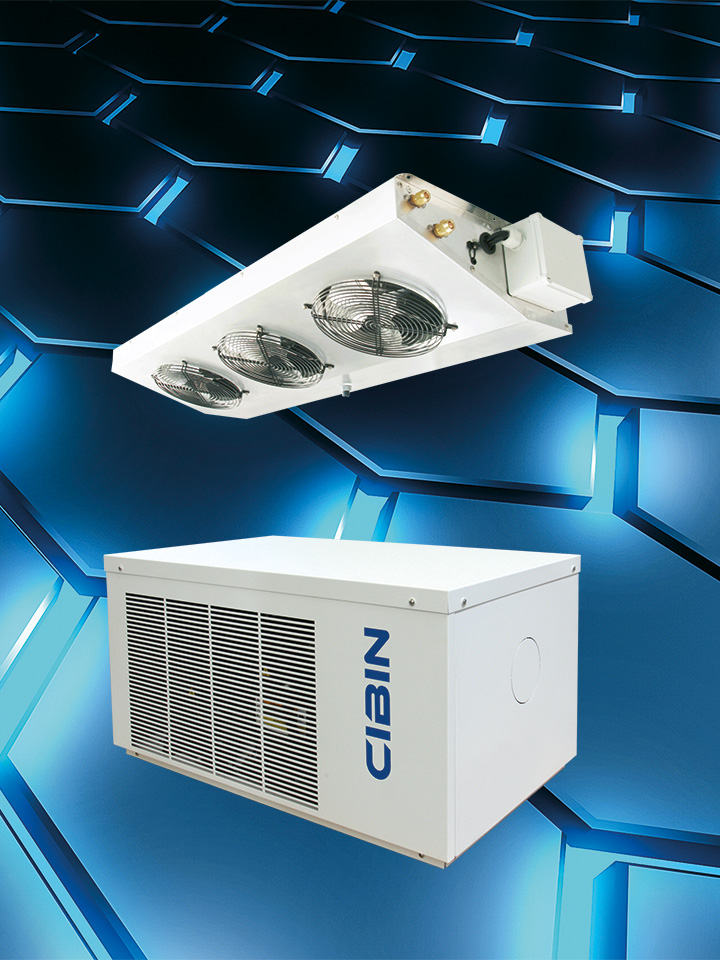

ICEBERG is the perfect refrigerating system made in a split version for cold rooms keeping fresh and already frozen products. ICEBERG is a refrigerating set that consists of one condensing unit, one  evaporator and one control panel.

Technical characteristics

Standard equipment:

  • Hermetic compressor *
  • Semi-hermetic compressor *
  • Anti-vibration compressor brackets
  • Vibration-cushioned suction and discharge piping of the compressor
  • Crankcase resistance
  • Air condensation
  • Sound-absorbing body coating
  • Galvanized powder coated sheet steel body
  • Evaporator body of aluminium-magnesium alloy
  • Evaporator of copper pipes and aluminium fins
  • Condenser of copper pipes and aluminium fins
  • Automatic restarting low pressure switch
  • Automatic restarting high pressure switch
  • Axial fan
  • Safety valve *
  • Condenser fans protection
  • Thermic compressor protection
  • Thermic compressor protection with motor protection *
  • Condensation control pressure switch
  • Thermostatic expansion valve with external equalization
  • Dehydrator filter
  • Liquid gas solenoid valve
  • Liquid receiver
  • Sight glass
  • Suction pipe stop cock
  • Liquid gas pipe stop cock
  • Automatic electric defrosting
  • Compressor stop in idling
  • High and low pressure ¼” pipe plugs
  • Condensation outlet resistor (only for low temperature models)
  • Thermic magnetic switch
  • Cold room ceiling light
  • Ambient temperature probe
  • Defrosting end temperature probe
  • Condensation control temperature probe
  • Connecting cable for door micro switch to turn off the system and to turn on the light at door opening
  • Free relay for transfer alarm signals

Remote control with:

  • Transformer
  • Digital display with temperature indicator at one decimal
  • On/Off switch
  • Cold room light switch
  • Running state display: cold – defrosting – evaporator fans – alarm status
  • Programming keys
  • Alarm display
  • Manual defrosting key
  • High temperature alarm
  • Low temperature alarm
  • High temperature alarm dirty condenser
  • Low temperature alarm condenser
  • Open door alarm
  • High pressure alarm
  • Low pressure alarm
  • Defrosting end alarm because of time-out
  • Alarm ambient temperature probe defect
  • Alarm defrosting end temperature probe defect
  • Alarm condensation control temperature probe defect
  • Timer emergency running in case of these events:- Ambient temperature probe defect- Defrosting end temperature probe defect
    – Condensation control temperature probe defect
    – Cold room door open (if there is door micro switch)
  • Installation possibility of a second remote control as slave
  • Pre-set connection for Frigotel supervision



Optional:

  • Door micro switch
  • Water condensation with liquid receiver. Pressure control valve. Pipe connection ½”
  • Different voltage
  • Tropicalised version
  • Condenser fan speed regulator
  • Pre-heated switchboard
  • Voltage display for machine stop in case of incorrect power supply
  • Long distance option for the remote control at distances longer than 15 m
  • Acoustic siren with flashing to indicate the alarm state
  • Switchboard for the management of two machines in the same cold room
  • Another remote control to use as slave
  • Electronic module for the connection to Frigotel supervision system
  • Evaporator with cataphoretically painting
  • Condenser with cataphoretically painting
  • Acoustical soundproofed version

* depending on model

Destined use
Cibin’s refrigerating equipment is classed as food and agricultural machinery (MACHINES DIRECTIVE 2006/42/EC), destined for the treatment of food products.
The machine is designed for the conservation of foods and/or “fresh” products at temperatures indicated in annexes.
It has been designed to work in ambient temperatures from 0°C a +43°C (class T).
It has been designed to maintain a set temperature in a refrigerated cold room suitable for such uses.
The machine is not designed for use in cold rooms situated outside.
The machine is not designed for installation and use in an environment where there is risk of explosion.
Any use other than that permitted shall be considered improper, and in this case the Manufacturer will decline all liability.
The machine is not designed for the conservation of products, which produce corrosive substances.

Models

icona-scheda-passwordIn order to consult manual and data sheets, you should require the password

R404A – R507A

R452A

TN – R404A – R507A – R452A – 50 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc 0°C / Ta + 32°C

Technical data Manual
999908000 ICEBERG 04123 N 0.33 230/1+N/50 766
999908003 ICEBERG 06125 N 0.5 230/1+N/50 1025
999908004 ICEBERG 07125 N 0.75 230/1+N/50 1337
999908005 ICEBERG 09125 N 1 230/1+N/50 1490
999908006 ICEBERG 11225 N 1 230/1+N/50 2026
999908993 ICEBERG 11225 N 1 400/3+N/50 2026
999908157 ICEBERG 13225 N 1.2 230/1+N/50 2303
999908007 ICEBERG 13225 N 1.2 400/3+N/50 2303
999908170 ICEBERG 15225 N 1.5 230/1+N/50 2846
999908008 ICEBERG 15225 N 1.5 400/3+N/50 2846
999908011 ICEBERG 19325 N 1.8 400/3+N/50 3034
999908012 ICEBERG 24325 N 2.1 400/3+N/50 3503
999908015 ICEBERG 30235 N 2.6 400/3+N/50 4623
999908016 ICEBERG 35235 N 3.3 400/3+N/50 5999
999908035 ICEBERG 30240 SN 3 400/3+N/50 8930
999908021 ICEBERG 40240 SN 4 400/3+N/50 9968
999905023 ICEBERG 50240 SN 5 400/3+N/50 13380

BT – R404A – R507A – R452A – 50 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc – 20°C / Ta + 32°C

Technical data Manual
999908998 ICEBERG 10123 B 1 230/1+N/50 667
999908001 ICEBERG 12125 B 1.2 230/1+N/50 880
999908002 ICEBERG 17125 B 1.7 230/1+N/50 1072
999908095 ICEBERG 17125 B 1.7 400/3+N/50 1072
999908009 ICEBERG 19225 B 1.8 400/3+N/50 1584
999908173 ICEBERG 18225 SB 1.5 400/3+N/50 1894
999908060 ICEBERG 24225 B 1.5 230/1+N/50 2090
999908010 ICEBERG 24225 B 1.5 400/3+N/50 2090
999905041 ICEBERG 20225 SB 2 400/3+N/50 2070
999908013 ICEBERG 32325 B 3.4 400/3+N/50 2794
999905040 ICEBERG 20325 SB 2 400/3+N/50 3149
999908014 ICEBERG 35325 B 4.3 400/3+N/50 2968
999905174 ICEBERG 30325 SB 3 400/3+N/50 3815
999908017 ICEBERG 45235 B 5.6 400/3+N/50 4061
999908018 ICEBERG 40235 SB 4 400/3+N/50 5118
999908019 ICEBERG 50235 SB 5 400/3+N/50 6128
999908038 ICEBERG 75240 SB 7.5 400/3+N/50 9254
999905027 ICEBERG 100240 SB 10 400/3+N/50 11278
999908028 ICEBERG 150240 SB 15 400/3+N/50 12267

TN – R404A – R507A – R452A – 60 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc 0°C / Ta + 32°C

Technical data Manual
0 ICEBERG 19325 N 1.8 230/3+N/60 3034

BT – R404A – R507A – R452A – 60 Hz

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc – 20°C / Ta + 32°C

Technical data Manual
0 ICEBERG 35325 B 4.3 230/3+N/60 2968

TN – R404A – R507A – R452A – Water-condensed units

Code Model CV Power supply


V/ph/Hz

Capacity W*


Tc 0°C / Ta + 32°C

Technical data Manual
999908232 ICEBERG 06125 N W 0.33 230/1+N/50
999908236 ICEBERG 07125 N W 0.75 230/1+N/50
999908233 ICEBERG 09125 N W 1 230/1+N/50
999908231 ICEBERG 11225 N W 1 230/1+N/50
999908235 ICEBERG 13225 N W 1.2 230/1+N/50
  ICEBERG 15225 N W 1.5 400/3+N/50
999908515 ICEBERG 24325 N W 2.1 400/3+N/50
  ICEBERG 35235 N W 3.3 400/3+N/50
  ICEBERG 40240 S N W 4 400/3+N/50
  ICEBERG 50240 S N W 5 400/3+N/50

BT – R404A – R507A – R452A – Water-condensed units

Code Model CV

V/ph/Hz

Capacity W*


Tc – 20°C / Ta + 32°C

Technical data Manual
999908234 ICEBERG 12125 B W 1.2 230/1+N/50
999908237 ICEBERG 17125 B W 1.7 230/1+N/50
999908610 ICEBERG 19225 B W 1.8 400/3+N/50
999908188 ICEBERG 24225 B W 2.4 400/3+N/50
  ICEBERG 35325 B W 4.3 400/3+N/50
  ICEBERG 45235 B W 5.6 400/3+N/50
  ICEBERG 50235 S B W 5 400/3+N/50
  ICEBERG 75240 S B W 7.5 400/3+N/50
  ICEBERG 100240 S B W 10 400/3+N/50
  ICEBERG 150240 S B W 15 400/3+N/50

* Max ambient temperature: + 43°C

Ta: Ambient temperature
Tc: Cold room temperature

Refrigerant piping

Modello Liquid piping Suction piping
04123 N Ø 6 mm – 1/4″ Ø 10 mm – 3/8″
06125 N Ø 6 mm – 1/4″ Ø 10 mm – 3/8″
07125 N Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
09125 N Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
11225 N Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
13225 N Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
15225 N Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
12125 B Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
17125 B Ø 10 mm – 3/8″ Ø 12 mm – 1/2″
19325 N Ø 10 mm – 3/8″ Ø 16 mm – 5/8″
24325 N Ø 10 mm – 3/8″ Ø 16 mm – 5/8″
19225 B Ø 10 mm – 3/8″ Ø 16 mm – 5/8″
24225 B Ø 10 mm – 3/8″ Ø 16 mm – 5/8″
32325 B Ø 10 mm – 3/8″ Ø 16 mm – 5/8″
35325 B Ø 10 mm – 3/8″ Ø 16 mm – 5/8″
30235 N Ø 12 mm – 1/2″ Ø 18 mm – 3/4″
35235 N Ø 12 mm – 1/2″ Ø 18 mm – 3/4″
45235 B Ø 12 mm – 1/2″ Ø 18 mm – 3/4″
40235 SB Ø 12 mm – 1/2″ Ø 18 mm – 3/4″
50235 B Ø 12 mm – 1/2″ Ø 18 mm – 3/4″
30240 N Ø 12 mm – 1/2″ Ø 22 mm – 7/8″
75240 N Ø 12 mm – 1/2″ Ø 28 mm – 1 1/8″
40240 N Ø 16 mm – 5/8″ Ø 28 mm – 1 1/8″
50240 N Ø 16 mm – 5/8″ Ø 28 mm – 1 1/8″
100240 B Ø 16 mm – 5/8″ Ø 28 mm – 1 1/8″
150240 B Ø 16 mm – 5/8″ Ø 28 mm – 1 1/8″

Maximum distance: 15 m. For greater distances please contact the technical office.

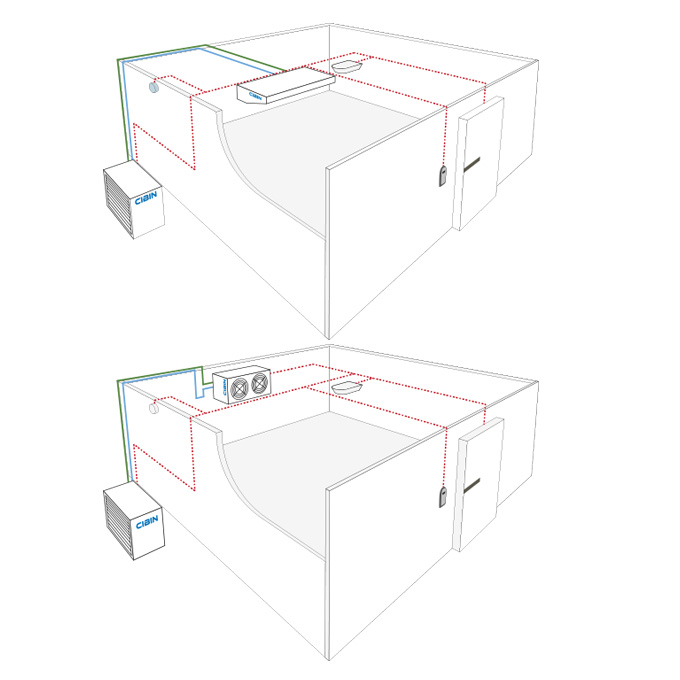

Connection cables

Modello C1 C2 C3 C4 C5
  mm2 mm2 mm2 mm2 mm2
04123 N 3 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
06125 N 3 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
07125 N 3 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
09125 N 3 x 2.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
11225 N 3 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
13225 N 5 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
15225 N 5 x 2.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
19325 N 5 x 2.5 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
24325 N 5 x 2.5 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
30235 N 5 x 2.5 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
35235 N 5 x 2.5 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
30340 SN 5 x 4 5×1.5 + 5×4 3 x 1* 2 x 1* 3 x 1*
40240 SN 5 x 4 5×1.5 + 5×4 3 x 1* 2 x 1* 3 x 1*
50240 SN 5 x 6 5×1.5 + 5×4 3 x 1* 2 x 1* 3 x 1*
12125 B 3 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
17125 B 3 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
19225 B 5 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
24225 B 5 x 1.5 7 x 1.5 3 x 1* 2 x 1* 3 x 1*
32325 B 5 x 2.5 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
35325 B 5 x 2.5 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
45235 SB 5 x 4 10 x 1.5 3 x 1* 2 x 1* 3 x 1*
50235 SB 5 x 4 10 x 1.5 3 x 1* 2 x 1* 3 x 1*

C1 Power supply cable to condensing unit

C2 Connection cable between evaporator and condensing unit

C3 Probe connection cable between evaporator and condensing unit

C4 Door switch connection cable to condensing unit

C5 Connection cable to the remote keyboard control panel

*Shielded
